Standard Fastening Set
Cost-effective and simple connection of profiles

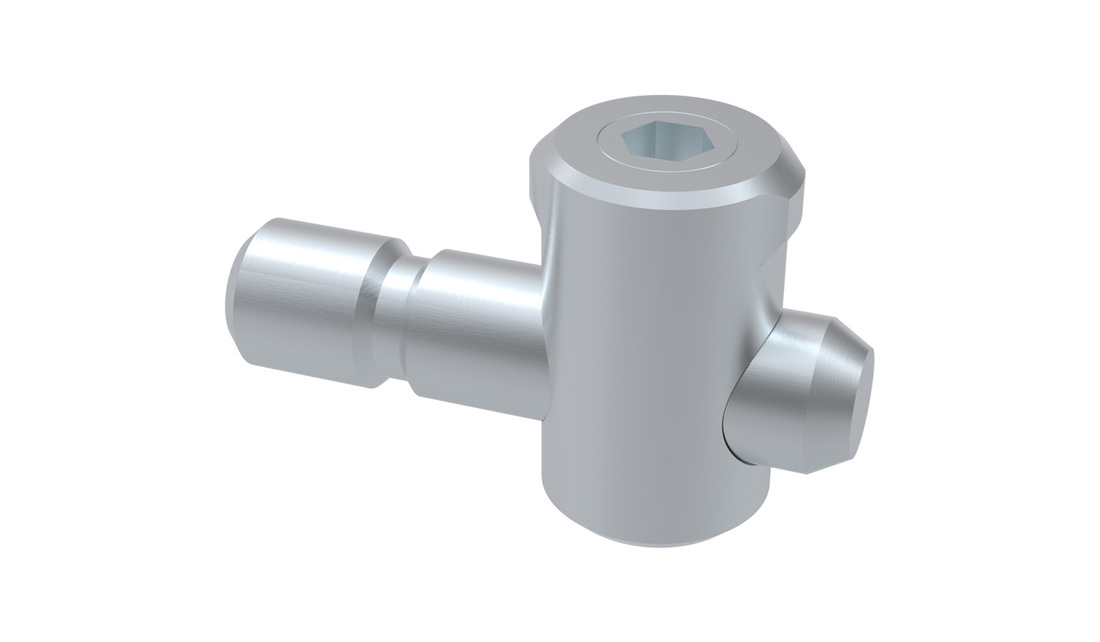

Central Fastener 40 G
Application:
Butt fastener. Used for joining two profiles end to end or for frontal attaching of plates. The anchor is screwed into the opposing profile or plate.
Assembly:
Bore hole for the barrel housing: Ø 12 mm, 15 mm from profile end, 30 mm deep.
Bore for center hole on end of profile for anchor: Ø 8.5 mm, 25 mm deep.
Read more
Butt fastener. Used for joining two profiles end to end or for frontal attaching of plates. The anchor is screwed into the opposing profile or plate.
Assembly:
Bore hole for the barrel housing: Ø 12 mm, 15 mm from profile end, 30 mm deep.
Bore for center hole on end of profile for anchor: Ø 8.5 mm, 25 mm deep.
Product Information
Material: Steel, zinc-plated
System: 40 - Slot 8
Type: Fasteners
Download PDF (all data)
code.product.loadingpdf
+
Add to PDF catalogue
| Designation | Select all | CAD | Compare | Get quote | Lead Time * | System | Weight (g) | |
|---|---|---|---|---|---|---|---|---|
|
|
|
2 | 40 - Slot 8 | 22 |
*Green: Stock item, normally immediate shipment. Blue: Contact us for delivery time.
-
-
