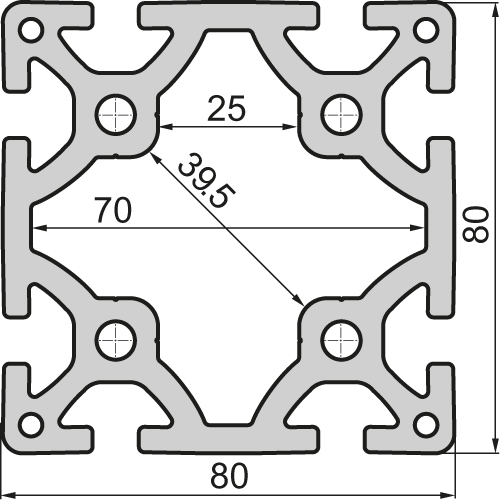

SP8400N – Profile 80x80
Product Information
System: 40 - Slot 8
Dimensions: 80x80
Length (mm): 6000
Material Quality: Strong
Profile Type: Open
Download PDF (all data)
code.product.loadingpdf
+
Add to PDF catalogue
| Designation | Select all | CAD | Compare | Get quote | Lead Time * | System | Ix (cm⁴) | ly (cm⁴) | Wx (cm³) | Wy (cm³) | A (cm²) | Mass (kg/m) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
1 | 40 - Slot 8 | 173.08 | 173.08 | 43.27 | 43.27 | 24.51 | 6.64 |
*Green: Stock item, normally immediate shipment. Blue: Contact us for delivery time.
-
-
