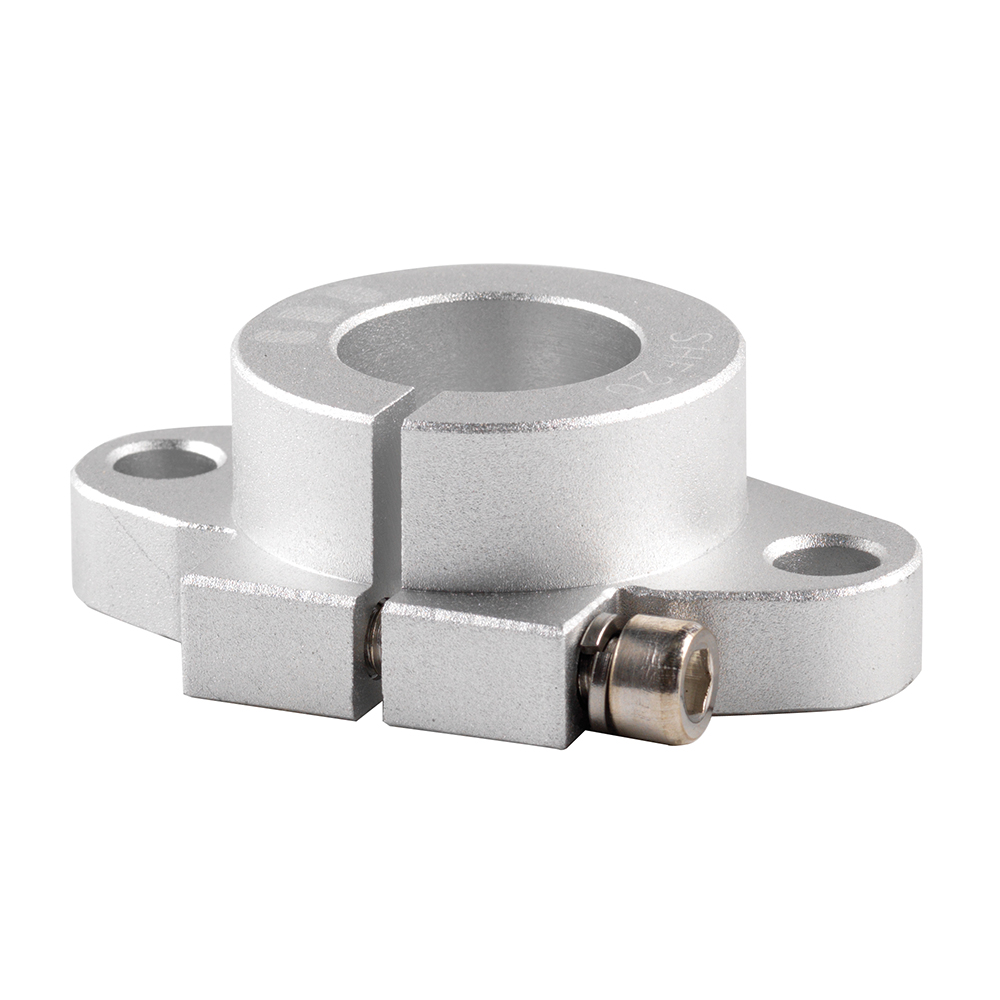

SHF

STANDARD

Product Information

Material: Aluminium
Download PDF (all data) code.product.loadingpdf
+ Add to PDF catalogue
Konfiguroi CAD Download CAD
Designation Select all CAD Compare Get quote Lead Time * Weight (kg)
Get quote 1 0.02
Get quote 1 0.027
Get quote 1 0.04
Get quote 1 0.06
Get quote 1 0.11
Get quote 1 0.51

*Green: Stock item, normally immediate shipment. Blue: Contact us for delivery time.

Designation Select all CAD Compare Get quote I L W B F G S T
Get quote 12 13 47 36 28 25 5.5 7
Get quote 16 16 50 40 31 28 5.5 8
Get quote 20 20 60 48 37 34 7 8
Get quote 25 25 70 56 42 40 7 10
Get quote 30 30 80 64 50 46 9 12
Get quote 40 40 102 80 67 56 12 16
