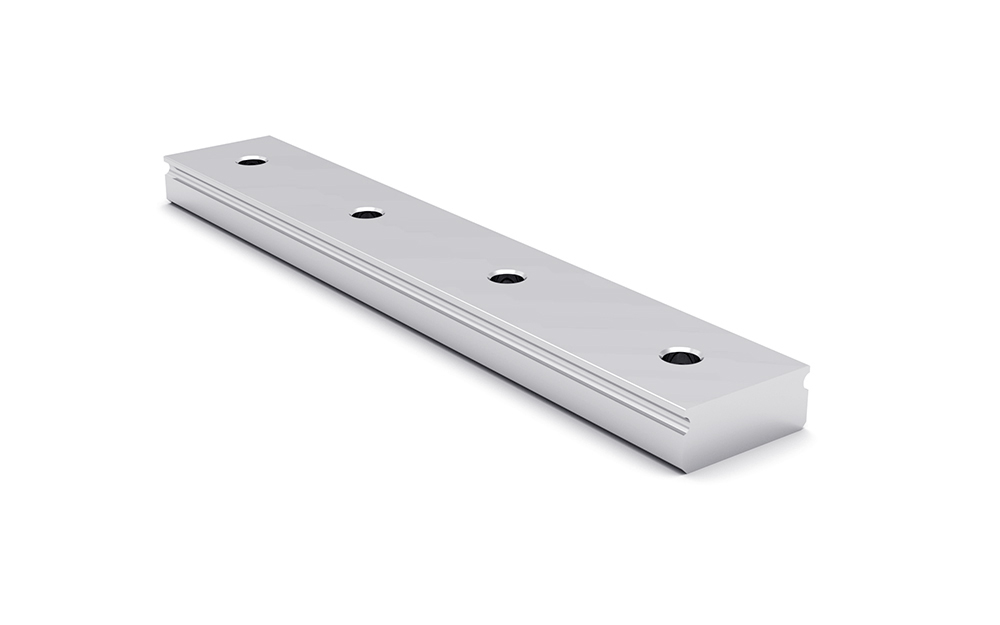

Wide MRU-W Rail

STANDARD
Tapped from bottom.

Dimensions in mm.

Please note that blocks and rails are not sold separately for sizes 2 and 3. Due to the small dimensions, blocks and sliders must be assembled and matched carefully to ensure correct quality and tolerances.
Read more
Download PDF (all data) code.product.loadingpdf
+ Add to PDF catalogue
Konfiguroi CAD Download CAD
Designation Select all CAD Compare Get quote Lead Time * Weight Rail (g/m)
Get quote 2 105
Get quote 2 280
Get quote 2 516
Get quote 2 940
Get quote 2 1472
Get quote 1 2818

*Green: Stock item, normally immediate shipment. Blue: Contact us for delivery time.

Designation Select all CAD Compare Get quote H1 W1 Hole Pitch (P) M1
Get quote 2.7 6 15 M3x0.5
Get quote 4 10 20 M3x0.5
Get quote 5.2 14 30 M4x0.7
Get quote 7.3 18 30 M4x0.7
Get quote 8.5 24 40 M5x0.8
Get quote 9.5 42 40 M5x0.8
