Distance Sheet BQ
Distance Sheet of steel or stainless steel
BQ---.4000

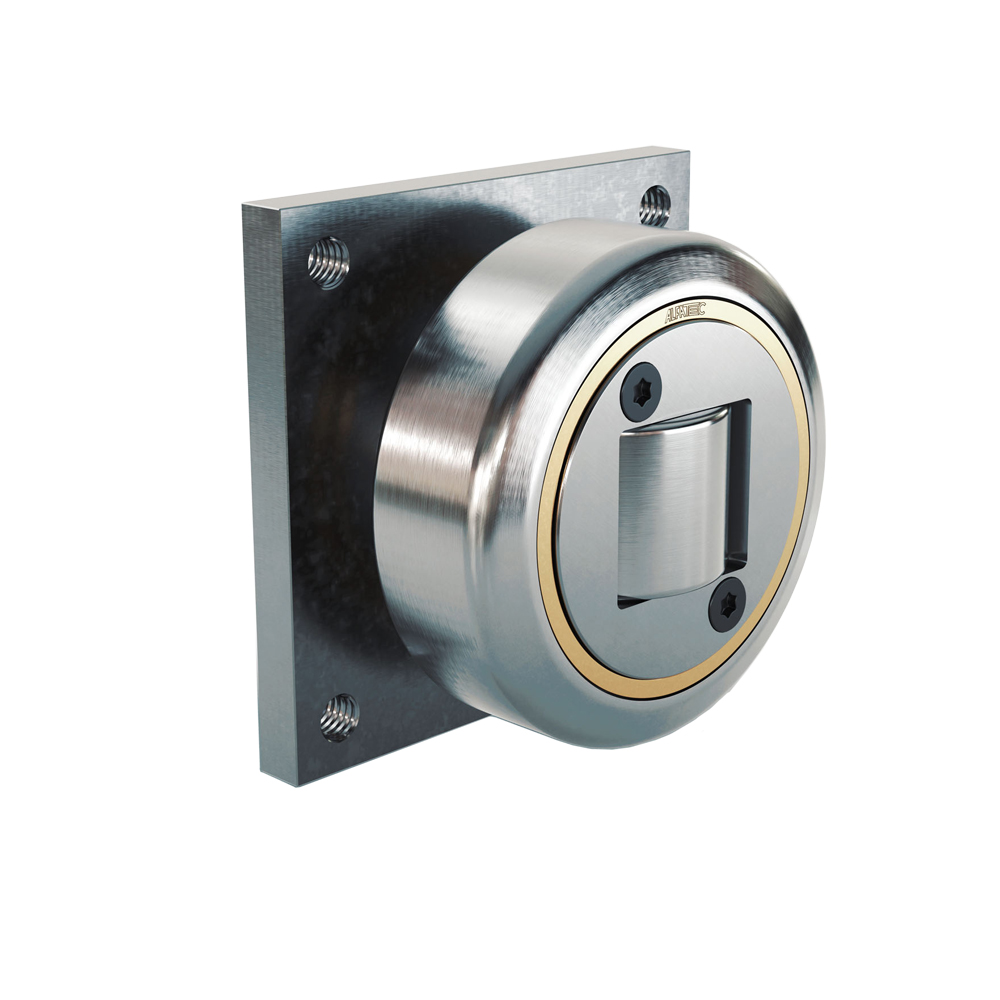

• The fixing element is welded with the respective combined roller
Order example: Roller + fixing element TR080.0390/BQ4000
Roller, adjustable, Ø 77,7 mm, INOX - welded to mounting plate 120 x 80 x 15 mm, INOX
Dimensions in mm.
Read more
Order example: Roller + fixing element TR080.0390/BQ4000
Roller, adjustable, Ø 77,7 mm, INOX - welded to mounting plate 120 x 80 x 15 mm, INOX
Dimensions in mm.
Product Information
Download PDF (all data)
code.product.loadingpdf
+
Add to PDF catalogue
| Designation | Select all | CAD | Compare | Get quote | Lead Time * | Remark | B | H | D | C | T | E |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
2 | Roller: TR050.0390 | 60 | 28 | M8 | 40 | 10 | 52.5 | |||
|
|
|
2 | Roller: TR070.0390 | 80 | 40 | M12 | 60 | 15 | 70.1 | |||
|
|
|
2 | Roller: TR080.0390 | 80 | 39.5 | M12 | 60 | 15 | 77.7 |
*Green: Stock item, normally immediate shipment. Blue: Contact us for delivery time.
-
TR---.0390
Stainless Roller combined, fixed with oilamide sliding block, for profile UP---.0780
