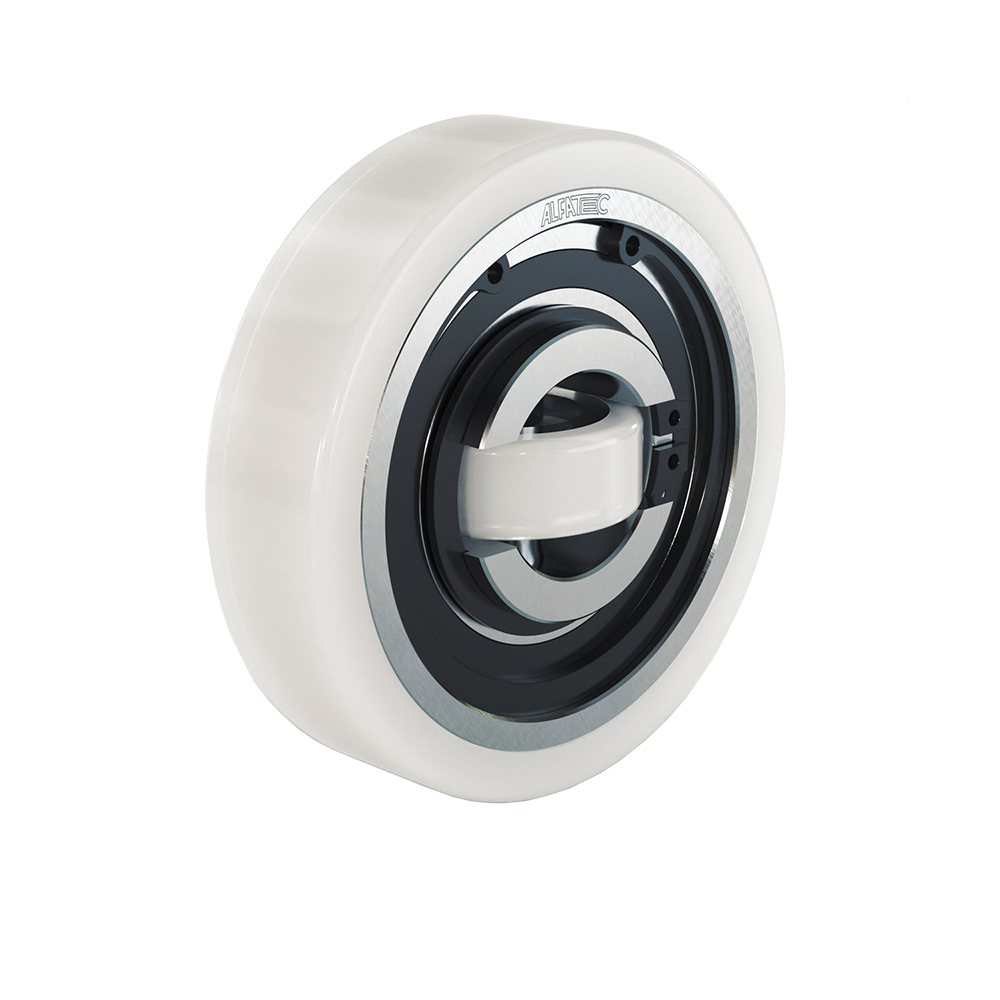

PAS ---.0200

• Polyamide roller combined – fixed
• Lubricated for lifetime
• High abrasion resistance
• Low friction
• High chemical resistance to alcohol, salts, greases and certain acids and alkalis in diluted concentration.

Reduction of value by speed of:
1 m/sec: 0%
2 m/sec: -20%
3 m/sec: -30%

Use profile UP---.0730. See Fixing element rectangular and square.

Order example: Roller + fixing plate PAS040.0360/BQ1000
Roller Ø 40 mm - welded with mounting element 50 mm x 50 mm x 8 mm

Dimensions in mm.
Read more

Product Information

Temperature: Maximum working temperature 80° C
Speed: Travel speed up to 5 m/sec
Roller Type: Polyamide
Sizes Available: 100; 125
Download PDF (all data) code.product.loadingpdf
+ Add to PDF catalogue
Konfiguroi CAD Download CAD
Designation Select all CAD CAD Compare Get quote Lead Time * System Load Capacity Radial (N) System Load Capacity Axial (N)
Get quote 2 2500 900
Get quote 2 6000 1300

*Green: Stock item, normally immediate shipment. Blue: Contact us for delivery time.

Designation Select all CAD CAD Compare Get quote A B C D E G L T U
Get quote 6.5 25 8 101.2 15 40 41 51 45
Get quote 4.5 40 10 125 30 40 51 65 55
